Blueprint Generation in Editor

About Slate classes

Since all slate widgets are contained in TSharedPtrs, I won’t always type TSharedPtr<SSomeWIdget> but SSomeWidget.

Small disclaimer

This topic has a LOT going on under the hood, I won’t mention EVERYTHING that happens when doing X with Y, I talk about the important/relevant stuff happening.

Base

My Blueprint

When you open an BP in editor it runs FBlueprintEditorModule::CreateBlueprintEditor which creates a TSharedRef<FBlueprintEditor>.

The “My Blueprint” tab slate widget is made in FMyBlueprintSummoner::CreateTabBody which returns a SMyBlueprint (that was previously made by FBlueprintEditor)

Categories and content

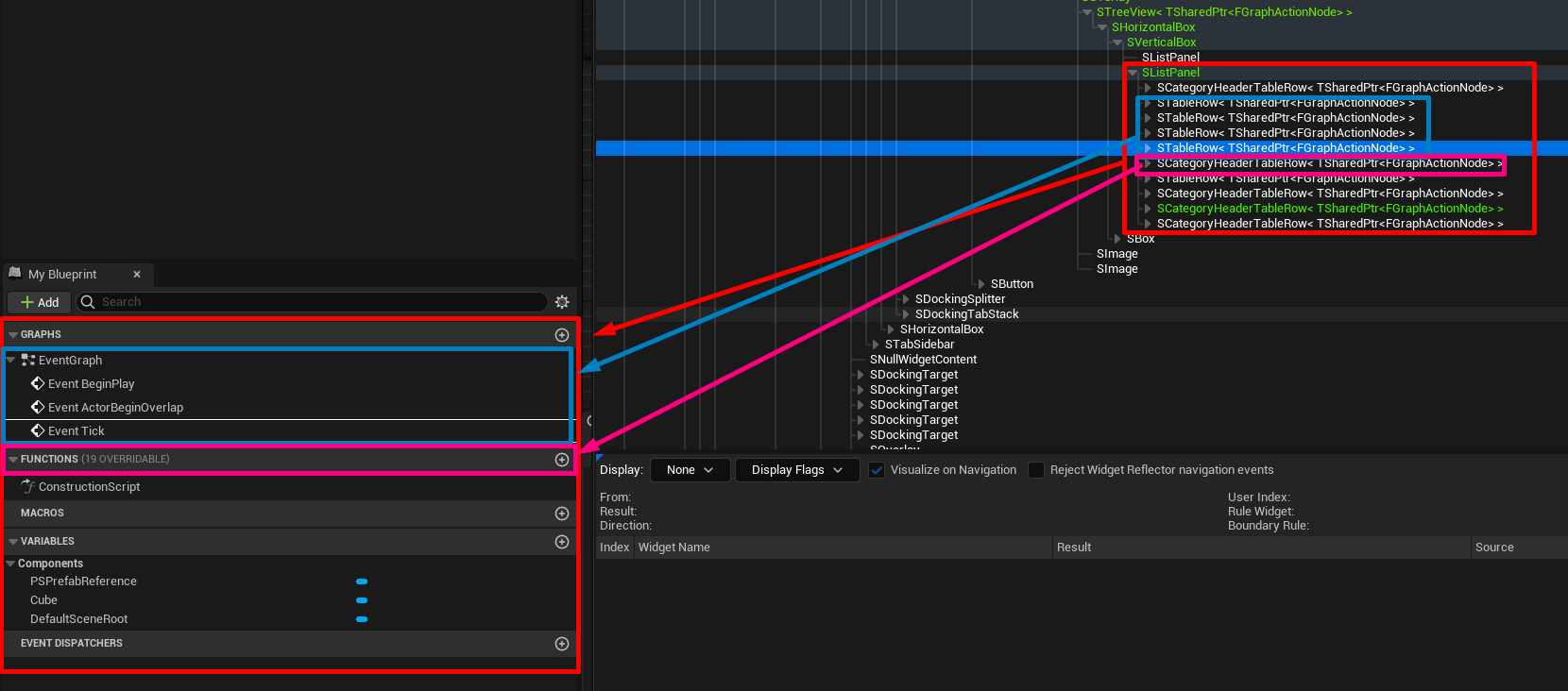

The categories “GRAPHS”, “FUNCTIONS”, “MACROS”, “VARIABLES” and “EVENT DISPATCHERS” are all of type SCategoryHeaderTableRow and the entries inside are STableRow<TSharedPtr<FGraphActionNode>> Example:

”+” buttons

The ”+” buttons of each of these categories are made in SMyBlueprint::CreateAddToSectionButton (its called on Paint)

When you click on any of them the call-back will be SMyBlueprint::OnAddButtonClickedOnSection. It then runs a ExecuteAction on the CommandList member var of type FUICommandList using the FBlueprintEditorCommands, the only thing that changes between the different categories ”+” buttons is what AddNewXXX FUICommandInfo will be called (for example for the ”+” variable button it gets AddNewVariable).

These commands are made in FBlueprintEditorCommands::RegisterCommands

Variables

Adding a new variable in BP

About FEdGraphPinType

In the editor the type of a variable is defined by a FEdGraphPinType.

• PinCategory will be whatever “category” is displayed in the picker, it can be byte (the literal type and for enums), int, int64, real, struct, object (or softobject), class (or softclass), interface, …
• PinSubCategory depends, usually None but if selecting float it will be double
• PinSubCategoryObject will hold a UObject weak ref to the selected object/class, if selecting a struct it will be a UScript

After the preliminary process mentioned above in Bones->"+" buttons the editor calls FBlueprintEditor::OnAddNewVariable. This function does the following:

• It will find a unique default var name using FBlueprintEditorUtils::FindUniqueKismetName.
• Then it calls FBlueprintEditorUtils::AddMemberVariable and passes the UBlueprint we are editing, the var name and the last type we used.
• And finally if it succeeds it will call FBlueprintEditor::RenameNewlyAddedAction manually (that’s’ why you can directly type to rename the variable name)

In depth of FBlueprintEditorUtils::AddMemberVariable:

• It calls Modify
• It creates a new var as a FBPVariableDescription and set name, GUID, property flags, and more (last pin type is either default (a boolean) or the last type set from SBlueprintPalette::OnVarTypeChanged).
• It adds this var in a an array named NewVariables.
• It calls FBlueprintEditorUtils::ValidateBlueprintChildVariables and FBlueprintEditorUtils::MarkBlueprintAsStructurallyModified. The latter calls FBlueprintCompilationManager::CompileSynchronously and MarkBlueprintAsModified.

NewVariables is used in A LOT of places, so here I will not cover all usages (duplicating, etc). Here are some places where the array is used when inside FBlueprintEditorUtils::AddMemberVariable and after it:

• UBlueprint::Serialize
• FKismetCompilerContext::CreateClassVariablesFromBlueprint
• FBlueprintEditorUtils::GetClassVariableList

FKismetCompilerContext::CreateClassVariablesFromBlueprint will iterate the new variables and call FKismetCompilerContext::CreateVariable (which calls FKismetCompilerUtilities::CreatePropertyOnScope and FKismetCompilerUtilities::LinkAddedProperty) which returns a FProperty.

These functions are also used to create the variables of our components (and more?)

Editing a variable type

The type picker is a SBlueprintPaletteItem (with internally SPinTypeSelectorHelper) (this slate widget is used in other scenarios).

When clicking the picker to open the selector UEdGraphSchema_K2::GetVariableTypeTree is called. This is where all types are added (one by one, or all sub types using GatherPinsImpl::FindStructs for structs, GatherPinsImpl::FindObjectsAndInterfaces for objects, classes and interfaces and GatherPinsImpl::FindEnums for enums)

After selecting a new type in the type picker, SBlueprintPalette::OnVarTypeChanged is called. Since here we are editing a BP class variable FBlueprintEditorUtils::ChangeMemberVariableType will be called.

Inside it will get back our var as a FBPVariableDescription.

For each UBlueprint that is a child of our Blueprint, or using it as an interface we get all UK2Node nodes (Get/Set nodes). This is used later to warn the user that changing the type will break at least 1 node connection.

Then we create a new transaction and call Modify. All lot of checks are run for validation and easy transfer/conversion between types. But eventually the new type is assigned to the variable and FBlueprintEditorUtils::MarkBlueprintAsStructurallyModified is called on the edited BP and any BP with broken connections. UEdGraphSchema_K2::ReconstructNode is also called on all previously found nodes.
