World Partition, Data Layers & HLOD

Resources

• See _Resources (Level Design)
• See Docs Page

World Partition

Actors

Configuration

Doc Section

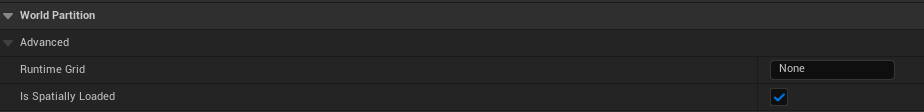

Grid: You can force a grid assignment by replacing None by a grid name. Load control: With Is Spatially Loaded and Data Layers you can manage when this actor can be loaded (See table).

Is Spatially Loaded	Data Layer setup	Actor loaded state
Enabled	Not inside any data layer	Will be loaded if streaming source close enough
Enabled	Inside a data layer	Will be loaded if streaming source close enough AND if the data layer is enabled.
Disabled	Not inside any data layer	Always loaded
Disable	Inside a data layer	Will be loaded if the data layer is enabled.

Editor management

In the World Partition Window, when you load a region it will call ULevel::AddLoadedActors. And when you unload it will call ULevel::RemoveLoadedActors.

Delegates:

• On add:
  • OnLoadedActorAddedToLevelPreEvent
  • OnLoadedActorAddedToLevelEvent
  • OnLoadedActorAddedToLevelPostEvent
• On remove
  • OnLoadedActorRemovedFromLevelPreEvent
  • OnLoadedActorRemovedFromLevelEvent
  • OnLoadedActorRemovedFromLevelPostEvent

Streaming sources

Any actor can have a streaming source component (UWorldPartitionStreamingSourceComponent) and be enabled to load nearby cells. The Player Controller is also by default a streaming source (it is using the IWorldPartitionStreamingSourceProvider interface, like the component).

Grids

Doc Section

Load methods

Doc Section

• (Editor Only) By the World Partition Window
• (Editor Only) By location volumes
• By streaming sources

Data Layers

Doc page

• Data Layer Asset: Cross world data (made from Data Layers Outliner or Content Brower).
• Data Layer Instance: World specific (made from Data Layers Outliner).

Debug Data Layers

Doc Section

Debug World Partition

Doc Section

HLOD

Doc Page
